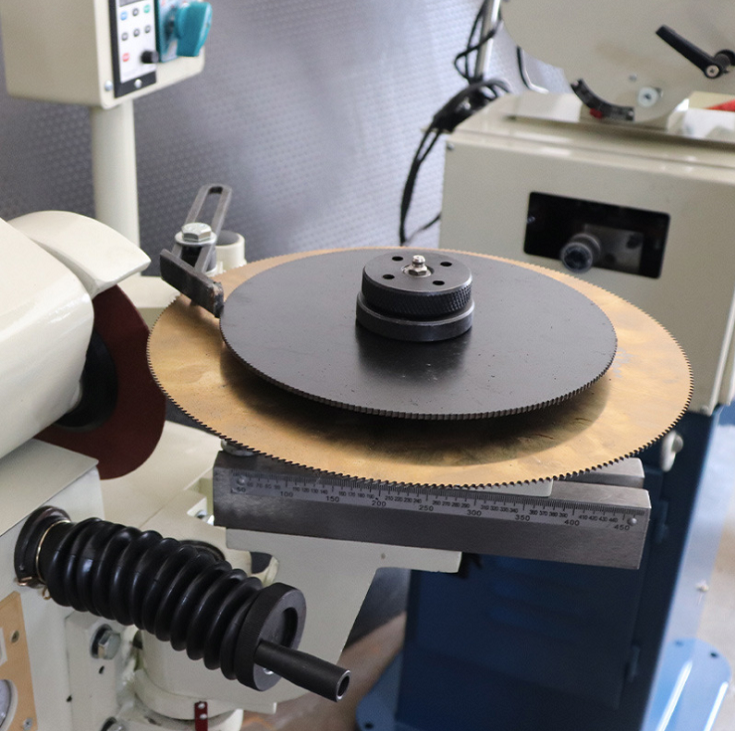

CHAOCHANG Blade Teeth Grinding Machine

Oct. 19, 2021

Saw blade teeth grinding machine is widely used in pipe manufacturing factory.

It is used to sharpen the teeth of the saw blade , low cost but high efficiency.

Here are the specifications of the blade teeth grinding machine:

1	Machine Model	TY-450
2	Blade Outer Diameter	40-450mm
3	Pitch of Teeth	Max.25mm
4	Depth of Notch	Max.8mm
5	Cutting Angle	-5~30℃
6	Feed speed	45~180 teeth
7	Blade Thickness	Max.8mm
8	Diameter of grinding wheel	75~150mm
9	Speed of grinding wheel	4200 rpm
10	Drive motor	1/2 HP
11	Wheel motor	3/4 HP
12	Dimension of Machine	5507001200mm
13	Weight of Machine	150KG

CHAOCHANG Blade Teeth Grinding Machine

With the features of high quality, environmental protection, energy saving and high efficiency, Chaochang brand induction heating equipment has been widely used in machinery, metallurgy, mining, building materials, automobile parts manufacturing. Please contact us if you want to know more about the machine.
