How Does a Seam Welder Work?

A seam welder is a specialized welding machine used to create continuous welds along the length of a joint or seam. It is commonly used in various industries, including automotive, aerospace, construction, and manufacturing. Seam welding offers several advantages, including high production rates, consistent weld quality, and increased efficiency. In this guide, we will explore how a seam welder works and the key components involved in the process.

Power Source:

The power source is an essential component of a seam welder. It provides the electrical energy required for the welding process. The most commonly used power sources are direct current (DC) or alternating current (AC) transformers. The power source supplies a controlled and adjustable current to the welding electrodes.

Electrodes:

Seam welding utilizes two electrodes, one on each side of the joint, to create the weld. These electrodes apply pressure and conduct the electrical current to generate the heat necessary for welding. The electrodes are typically made of copper or another conductive material that can withstand high temperatures and provide good electrical conductivity. They are designed to exert uniform pressure along the seam, ensuring proper contact between the workpieces and electrodes.

Workpiece Clamping Mechanism:

To maintain proper alignment and secure the workpieces during the welding process, a clamping mechanism is used. The clamps hold the workpieces firmly in place, allowing for consistent and precise positioning of the joint. The clamping mechanism may include hydraulic, pneumatic, or mechanical systems that exert sufficient pressure to prevent movement or distortion during welding.

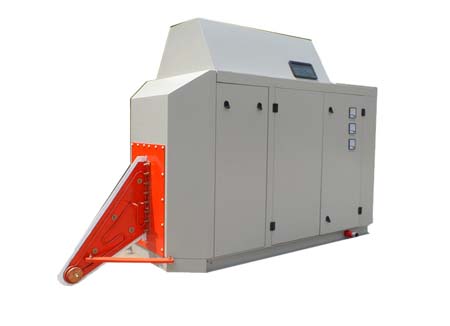

  Straight Pipe Seam Welder

Control System:

A control system is responsible for regulating and monitoring various parameters during the welding process. It ensures precise control over the welding speed, electrode pressure, current, and other variables to achieve desired weld characteristics. The control system may consist of electronic controls, sensors, and programmable logic controllers (PLCs) that monitor and adjust the welding parameters based on pre-set parameters or feedback from sensors.

Cooling System:

Seam welding generates heat that can potentially damage the electrodes or workpieces. To prevent overheating, a cooling system is employed. The cooling system may include water or air cooling methods to dissipate the heat generated during welding. Water-cooled electrodes are commonly used to maintain consistent electrode temperature and prolong their lifespan.

Welding Process:

The seam welding process involves the following steps:

• a. Preparation: The workpieces to be welded are properly aligned and securely clamped in the welding fixture.

• b. Electrode Contact: The electrodes are brought into contact with the workpieces at the starting point of the seam.

• c. Electrical Current Application: The power source supplies the desired current to the electrodes. The electrical current passes through the electrodes and workpieces, creating resistance heating at the joint.

• d. Welding Speed: The workpieces are moved at a controlled speed relative to the electrodes. The welding speed determines the amount of heat applied to the joint and the resulting weld characteristics.

• e. Seam Formation: As the workpieces move, the heat generated by the electrical current melts the metal at the joint, forming a molten pool. The molten pool solidifies behind the welding electrode, creating a continuous weld along the seam.

• f. Cooling: Once the weld is formed, the cooling system dissipates the heat, solidifying and strengthening the weld.

• g. Repeat: The process is repeated continuously as the workpieces move along the seam welding machine.

Conclusion:

A seam welder is a specialized welding machine used to create continuous welds along the length of a joint or seam. It utilizes a power source, electrodes, a clamping mechanism, a control system, and a cooling system to achieve consistent and high-quality welds.
