Understanding the Online Welded Pipe Seam Normalizer

An online welded pipe seam normalizer is a specialized piece of equipment used in the manufacturing and production of welded pipes. This technology plays a crucial role in ensuring the quality, strength, and structural integrity of welded pipes by normalizing the weld seam. By using heat treatment techniques, this equipment eliminates potential defects, stresses, and irregularities that may arise during the welding process. This guide provides a comprehensive overview of the online welded pipe seam normalizer, its working principles, and its significance in the pipe manufacturing industry.

Importance of Normalizing Welded Pipe Seams

Welding is a common method for joining metals, including in the production of pipes. However, the welding process can introduce various challenges, such as residual stresses, non-uniform microstructures, and potential defects like porosity and inclusions. These issues can weaken the structural integrity of the welded pipe seam and compromise its performance under load or pressure. The normalizing process addresses these concerns by providing controlled heat treatment to the welded seam, resulting in improved mechanical properties and consistency.

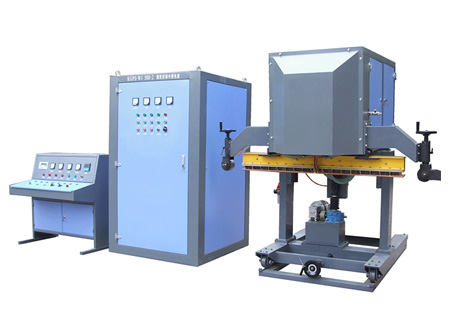

Online Welded Pipe Seam Normaliser

Working Principles of the Online Welded Pipe Seam Normalizer

The online welded pipe seam normalizer operates as an integral part of the production line.

Here's how it generally works:

• In-Line Integration: The normalizer is integrated into the pipe production line immediately after the welding process. This integration allows for seamless and efficient treatment of the welded seam without disrupting the overall production flow.

• Induction Heating: The normalizing process involves using induction heating technology. High-frequency electrical currents are generated, creating an alternating magnetic field. This magnetic field induces heat in the welded seam through electromagnetic induction.

• Controlled Heating: The induction heating system is precisely controlled to apply heat uniformly to the welded seam. The controlled heating ensures that the entire seam reaches the desired temperature for normalizing.

• Austenitization and Cooling: The heat treatment aims to transform the microstructure of the welded seam, typically by austenitization, a phase transformation in which the material's crystal structure changes. After achieving the desired transformation, the seam is then cooled rapidly to preserve the new microstructure.

• Mechanical Properties Enhancement: The normalizing process eliminates residual stresses, improves homogeneity, and enhances mechanical properties such as strength and ductility. It results in a normalized microstructure that contributes to the pipe's overall durability and performance.

Benefits of Online Welded Pipe Seam Normalization

• Structural Integrity: Normalization eliminates potential defects and stresses, ensuring the welded seam's integrity and durability.

• Consistency: The online process offers consistent treatment for every welded pipe, minimizing variations in quality.

• Time and Efficiency: Being integrated into the production line, the normalizer saves time compared to post-weld heat treatment processes.

• Cost Savings: By improving the quality of the welded seam, the need for subsequent quality control and potential rework is reduced.

• Mechanical Properties: The normalized microstructure enhances the pipe's mechanical properties, making it better suited for demanding applications.

Conclusion

The online welded pipe seam normalizer is a vital component in the manufacturing of high-quality welded pipes. By applying controlled heat treatment immediately after the welding process, this technology eliminates potential defects and stresses, ensuring consistent and reliable pipe performance. The integration of the normalizer into the production line streamlines the manufacturing process while enhancing the structural integrity and mechanical properties of the final product. As the demand for reliable and efficient pipes continues to rise, the online welded pipe seam normalizer remains a critical tool in meeting these industry standards.
