What Are the Different Types of Induction Hardening?

Induction hardening is a heat treatment process that is used to improve the hardness and durability of metal components. The process involves heating the surface of the component to a high temperature using an induction coil, and then rapidly cooling it by quenching it in a liquid. This process creates a hard and wear-resistant surface layer, while retaining the toughness and ductility of the underlying material. There are several different types of induction hardening, each of which is used for specific applications.

Single Shot Induction Hardening

Single shot induction hardening is a type of induction hardening that involves heating the entire surface of the component at once, and then quenching it in a liquid. This is the simplest and most common type of induction hardening, and is often used for low-volume production runs or for repairing damaged parts.

Scanning Induction Hardening

Scanning induction hardening is a type of induction hardening that involves moving the induction coil over the surface of the component in a specific pattern. This allows for more precise control over the heat distribution, which can be useful for components with complex shapes or for achieving specific hardness profiles.

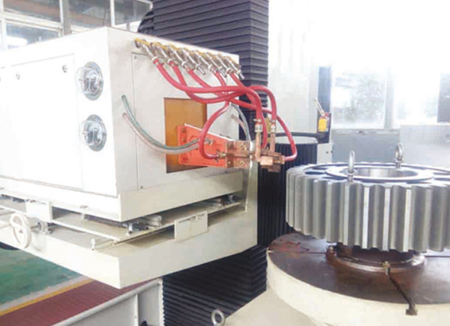

Gear Sing Tooth CNC Induction Hardening Equipment

Continuous Induction Hardening

Continuous induction hardening is a type of induction hardening that is used for high-volume production runs. In this process, the component is continuously fed through a series of induction coils, each of which heats a specific section of the component. The component is then quenched in a liquid bath after it has passed through the final coil. This process can be highly automated, which makes it cost-effective for large-scale production.

Vertical Induction Hardening

Vertical induction hardening is a type of induction hardening that is used for long, slender components such as shafts or axles. In this process, the component is inserted into a vertical induction coil, which heats the surface of the component from top to bottom. The component is then quenched in a liquid bath at the bottom of the coil. This process can be more efficient than other types of induction hardening for long components, as it minimizes the amount of heat required.

Axial Induction Hardening

Axial induction hardening is a type of induction hardening that is used for components with a circular cross-section, such as gears or bearings. In this process, the component is rotated while it is heated by an axial induction coil, which runs along the length of the component. The component is then quenched in a liquid bath after it has been heated. This process can be used to achieve a specific hardness profile along the length of the component, which can be useful for achieving optimal performance.

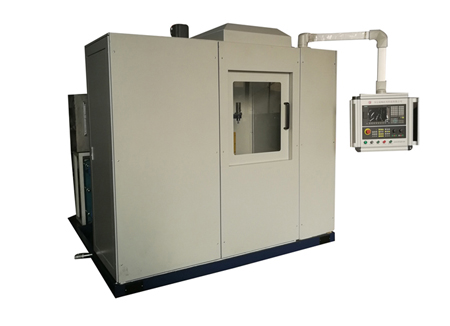

DSP Full Digital Control Induction Hardening Equipment

Stationary Induction Hardening

Stationary induction hardening is a type of induction hardening that is used for components that cannot be easily moved or rotated, such as large gears or bearings. In this process, the induction coil is stationary, and the component is moved through it using a mechanical handling system. The component is then quenched in a liquid bath after it has passed through the coil. This process can be used to achieve a specific hardness profile on a component that is too large or too heavy to be easily rotated.

Dual Frequency Induction Hardening

Dual frequency induction hardening is a type of induction hardening that uses two different frequencies of electromagnetic energy to heat the surface of the component. The first frequency is used to heat the surface of the component, while the second frequency is used to heat the deeper layers of the material. This can be useful for achieving a specific hardness profile that is optimized for the specific application.

In conclusion, induction hardening is a versatile heat treatment process that can be used to improve the hardness and durability of a wide range of metal components.
