Model: 100KW solid state HF welder for ERW tube

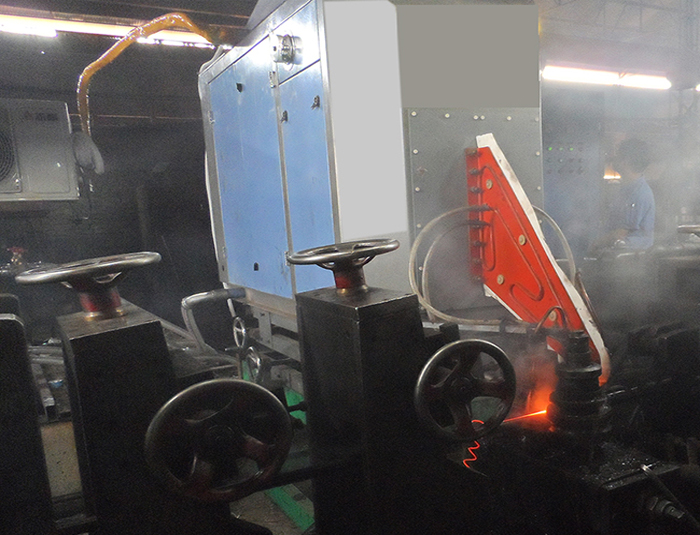

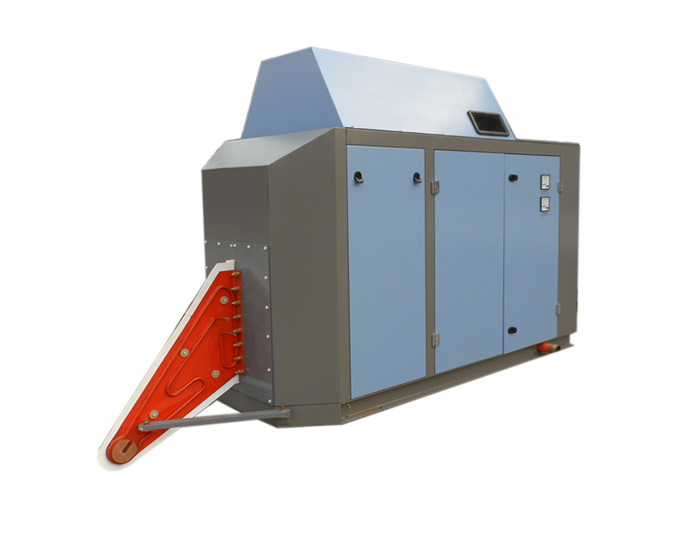

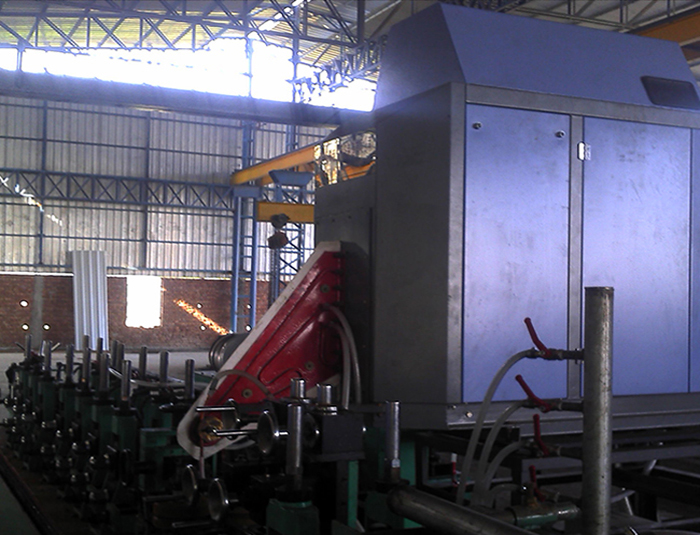

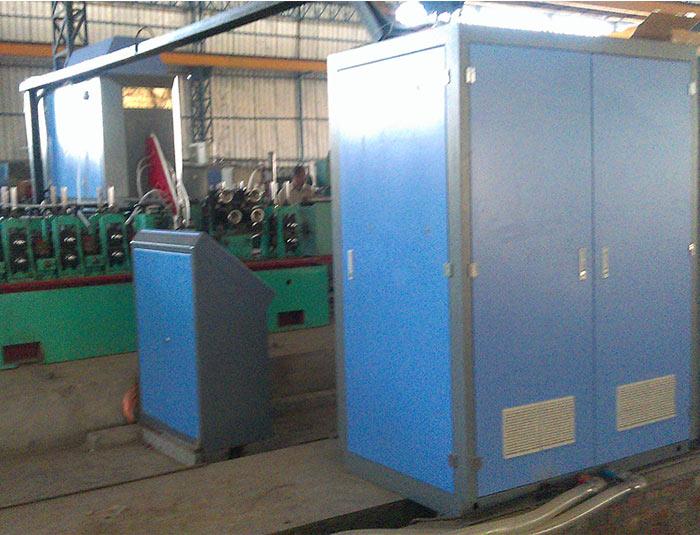

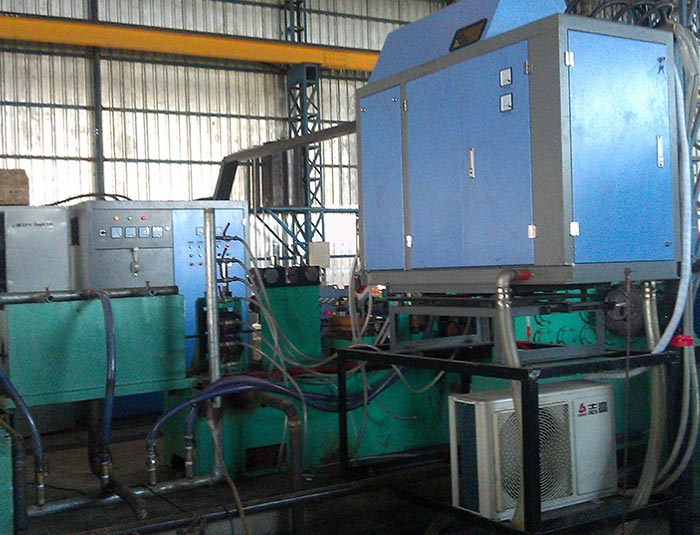

The whole set of solid state H.F.welder is composed of switch rectifying cabinet,inverter output cabinet, 2-D adjustable bracket, circulation soft water cooling system and central operation cabinet.
Technical parameters of 100KW solid state high frequency welder
Output power: Pout＞100kW
Designed frequency: f=400~450KHZ
①Designed parameters
Nominal power: 100kW
Rated DC power: Pd=120kW
Rated DC voltage: UdN=450V
Rated DC current: IdN=250A
The whole efficiency: η≥85%
Pout >100kw
MOSFET inverter: 60kW×2
Tank circuit output mode: no welding transformer output, secondary resonance
②Power distribution requirements
Nominal power: 100kW
Rated DC power: Pd=120kW
Line-in power factor: COSφ≥0.85
Power distribution capacity: S≤180kVA
Power supply voltage: 3-phase 380V/50Hz (equipment could work at the voltage 380V±10%)
Line-in current: I=220 A
Line-in cable: each phase adopts 185mm2 copper cable, 3-phase 4-line
